Sizes1.2 m / 1.6 m / 2.0 m
05Product specifications

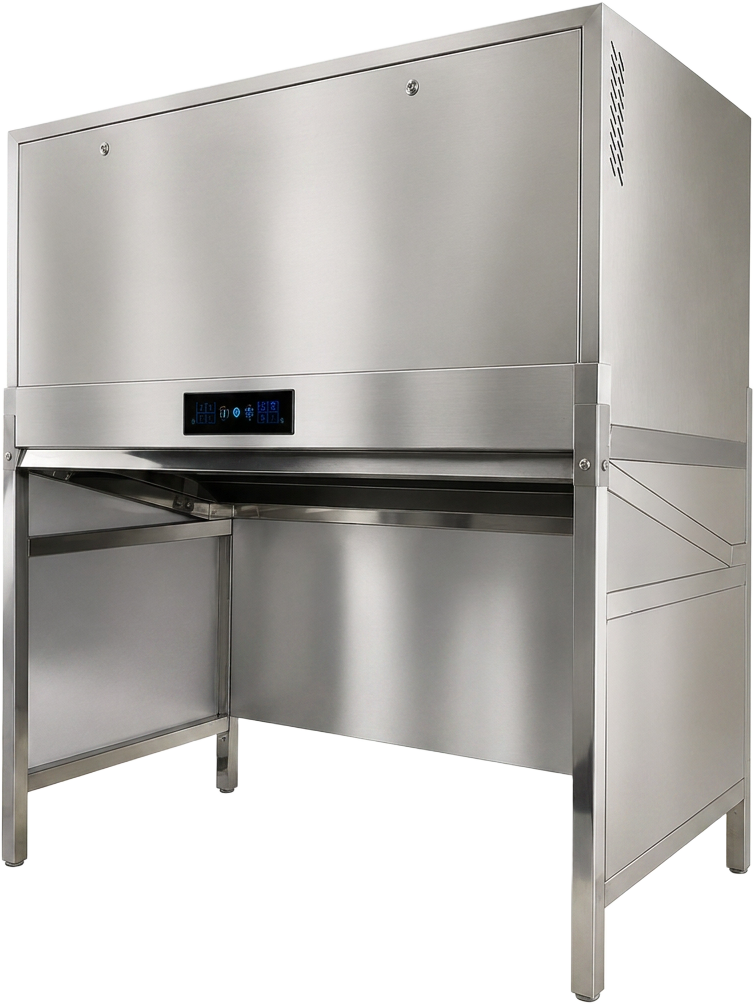

ABI-GAIL X33 — technical data
Complete specification for design, tender and fit-out coordination. Figures are for the standard unit; alternative duties are available on request.
Width
1600
mm
Depth
1100
mm
Height
1365
mm
Airflow
4000
m³/h
Power
1.8
kW
Stages
5
in series
01Full data
A
Dimensions & mass
- Overall width
- 1600 mm
- Overall depth
- 1100 mm
- Overall height
- 1365 mm
- Service clearance
- Front face only
- Mounting
- Suspended or leg-supported
B
Air performance
- Rated airflow
- 4000 m³/h
- Fan control
- Variable speed
- Capture velocity
- 0.35 – 0.45 m/s at canopy edge
- Discharge
- Recirculating or short duct run
- Sound pressure
- ≤ 68 dB(A) at 1 m
C
Electrical
- Absorbed power
- 1.8 kW
- Supply
- 380 – 415 V / 3Ph / 50 Hz
- Protection
- Integrated isolator and motor protection
- Control panel
- Front-mounted digital interface
- Monitoring
- Continuous differential pressure
D
Filtration line
- Stage 1
- Stainless baffle separation
- Stage 2
- Multi-layer woven mesh pre-filter
- Stage 3
- High-efficiency progressive-density panel
- Stage 4
- Deep-bed granular activated carbon
- Stage 5
- Oxidation polish chamber
E
Construction
- Body material
- Stainless steel 304
- Finish
- Brushed, washdown-rated
- Filter bay
- Gasketed, keyed, tool-free access
- Grease collection
- Removable drain trough
- Internal surfaces
- Fully cleanable
Tolerances
Dimensional figures ±5 mm. Final drawings issued per project.
Duty variants
Alternative airflow configurations available on request.
Compliance
Built to specification for UAE commercial kitchen fit-out.
Next step
Request the full data sheet
We issue dimensioned drawings, electrical schedules and filter schedules for coordination with your MEP consultant.
